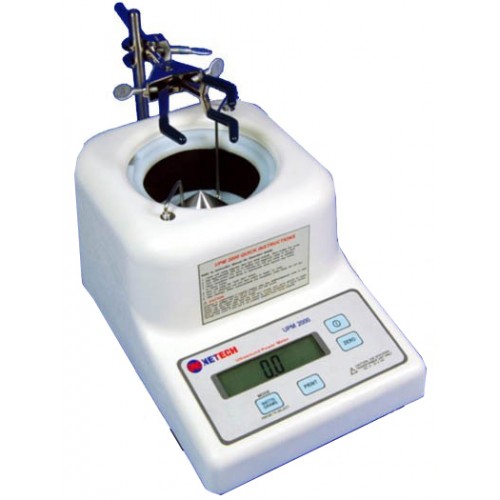

Netech Ultrasound Power Meter UPM 2000

Brand: Netech Corp
Product Code: UPM 2000
Availability: Indent 1-2 bulan

Harga: CALL

Product Description

The UPM 2000 Digital Ultrasound Wattmeter (Power meter) is deigned to provide an accurate means of verifying and calibrating the output of therapeutic ultrasound devices. It measures output by utilizing its state of the art microprocessor and strain gauge bridge transducer, providing a quick readingThe UPM 2000 is compact, simple to use, portable and ruggedly built.

The UPM 2000 uses an auto zero function and a calibration check weight provided with the unit making it easy to verify the calibration in the field. The unit is powered by a 9 Volt alkaline or using AC adapter supplied with the unit.

• Measures total-pulsed or continuous-average power
• Quickly and accurately make power measurements
• Accommodate a variety of transducer shapes and sizes
• Large easy to read Display
• High Resolution -0.1W
• Easy drainage of the tank
• Auto zero function
• RS 232 Port
• Light weight and easy to carry
• Field Calibration check using weight standard.
• Compact, light weight, easy to carry

Measurement range : 0.1 to 30 Watts
Input Power Level: 0 – 30 W
Input Frequency: 0.5 – 10 MHz
Resolution: 0.1 W
Accuracy: Electrical +/- .15 W (+/-.01 grams)
Repeatability: +/- 3% of reading +/- .2 watts
Acceptable Transducer Size: 3” max (7.6 cm) diameter
Operating Temperature: 10 degree – 30 degree C (50 degree – 85 degree F)
Power requirements: 9 Volt alkaline or equivalent
Battery life: 10 Hours continuous operation
Dimensions: 9” x 14 1/2”
Height: 7 1/2” (10 3/4” with Clamp Post)
