Netech LKG610 Electrical Safety Analyzer

Availability: Indent 1-2 bulan

Harga : CALL

Product Description

ACCESSORIES: Soft Carrying Case, Test Lead, Operator Manual, Calibration Certificate.OVERVIEW:

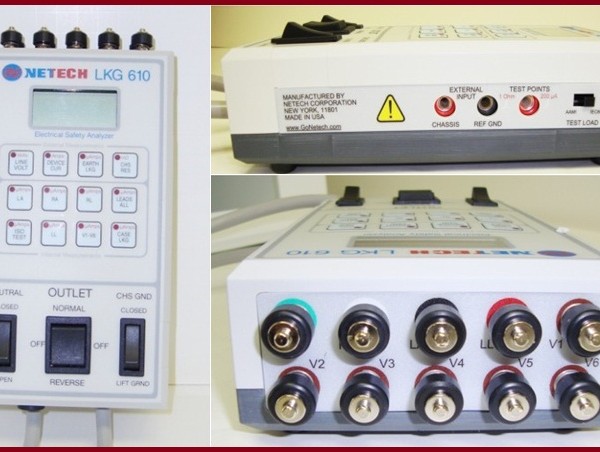

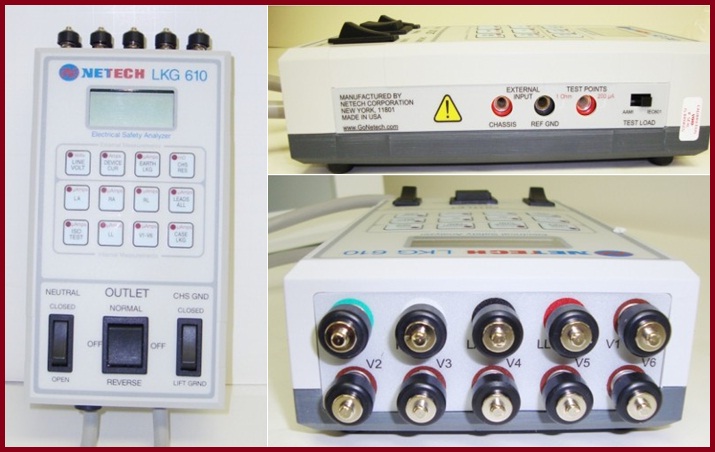

The LKG 610 is a hand-held, microprocessor based Electrical Safety Analyzer designed to test any medical equipment.The full function tester has 10 leads that accept snaps and any post. Tests are quickly and easily performed when the appropriate key is pushed. Measurement results are displayed on the large LCD and measurement units are clearly indicated by an LED. Large switches change polarity, open and close neutral, and lift the ground.In addition to the standard electrical safety tests, the LKG 610 makes both lead ISO and point-to-point measurements. Calibrated test points ensure accuracy and repeatability. Either the AAMI or the IEC601 test load may be selected. The fuse is accessible.

The LKG 610 provides the best combination of features, performance, and value of any portable electrical safety analyzer.


*Easy to Use
*Large LCD Display
*Accessible Line Fuse
*Calibrated Test Points
*Selectable Test Loads
*15 and 20 Amp Capability
*Point to Point Testing
*Use any Test Cable
*10 Lead Universal Connectors
*Complies with AAMI/ESI 1993
*LED Unit of Measure Indication
*Outlet Polarity
*Line Voltage
*Cord Resistance
*Case Leakage Current
*Earth Leakage Current
*Leads Leakage Current
*Leads ISO Test
*Instrument Current
*Point-to-Point MeasurementsSPECIFICATIONS:
LCD 3 1/2 digitsOperating Voltage:
110VAC or 220VAC (Option)Measurement Range:
Resistance: 0 -1999 mW
Leakage Current: 0 -1999 mA
Instrument Current: 0 -19.99 Amps

Resistance: +/- 2% +/- 1 LSD

+/- 1% FS DC to 1 kHz +/- 1 LSD
+/- 2 % FS DC 1 kHz to 100 kHz
+/- 4% FS 100 kHz to 1 MHz

Instrument Current: +/- 2% +/- 1 LSD

8 X 4.5 X 2 in ( 20.3 X 11.4 X 5 cm )

2.5 lbs ( 1.1 kg )
