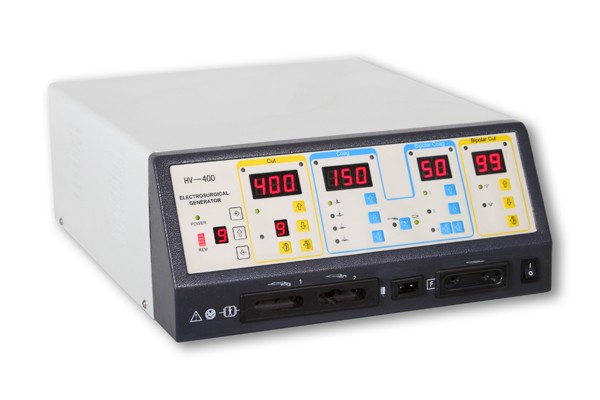

HV-400 Electrosurgical Generator

Price : CALL

availability : ready stock

NO. REG : AKL 21603616307

Surat Izin Edar ESU HV400

Brosur ESU HV 400

Category:

Product Description

main features :

1. digital display of output power and sound signal given when the minimum or maximum power limit is reached

2. ten Mono-polar cut modes : pure, blend 1/2/3/4/5/6/7/8/9;

3. four Mono-polar coag modes: contact, dessication, fulgurate and spray

4. two bipolar cut modes: pure cut and blend cut

5. two bipolar coag modes : precise coag and standart coag

6. memory function could store up to 10 records

7. time-control bipolar coag output mode

8. two pencil simultaneous working mode

9. designed with patient plate continuity monitoring circuit, this can effectively prevent electrical burns to patient

10. isolated RF output

11. output controlled by pencil switch or footswitch

12. adjustable output sound volume

13. functions expandable : for use in combination with endoscope or argon trolley

14. top quality component and devices employed and high reliability



*the maximum output under bipolar and Mono-polar modes

A. Mono-polar :

1. pure cut =500 ohm= 400 W= 1900V

2.Blend 1   =500 ohm=300 W= 2600V

3.Blend 2  =500 ohm= 300 W= 2800V

4.Blend 3 =500 ohm=300W=2800V
5.Blend 4 = 500 ohm=200 W=2400V

6.Blend 5 = 500 ohm= 200W = 2500V

7.Blend 6 = 500 ohm = 200 W= 2600 V

8. Blend 7 = 500 ohm= 150 W= 2400V

9. Blend 8 = 500 ohm = 150W = 2600 V

10. Blend 9 = 500 ohm = 150W = 2800V

contact coag = 300 ohm = 150 W= 3000 V

desiccate coag = 300 ohm = 150 W= 3000V

Fulgurate coag = 500 ohm = 120 W= 5500V

Spray coag = 500 ohm = 120 W = 6000V

B. Bipolar :

1. pure cut = 100 ohm = 99 W= 480 V

2. Blend cut = 100 ohm = 99 W= 550 V

3. Precise coag = 100 ohm = 50 W= 380 V

4. Standart coag =100 ohm= 99 W= 590 V
